LED Downlight

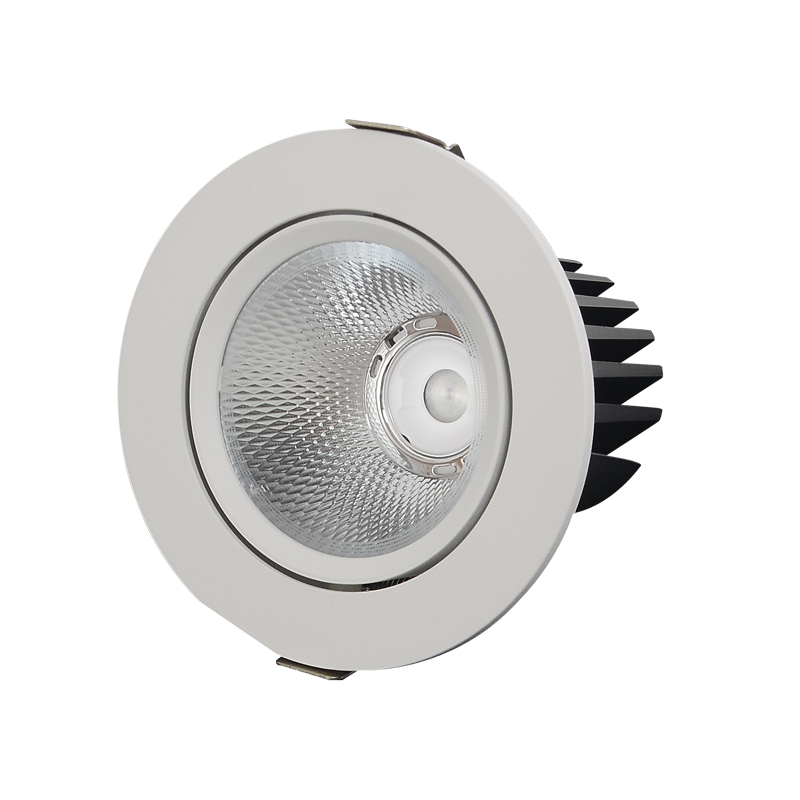

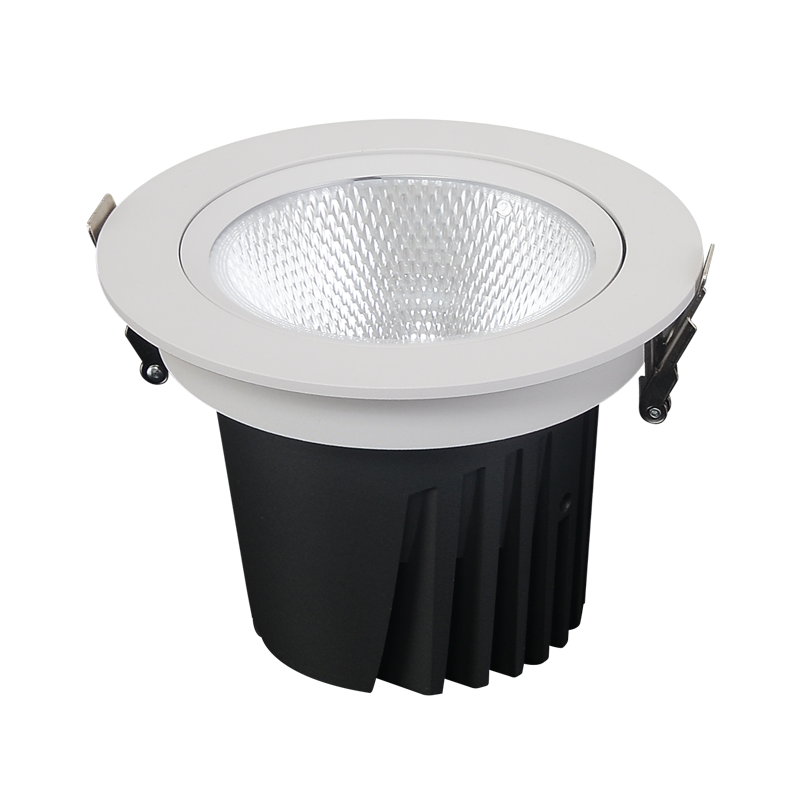

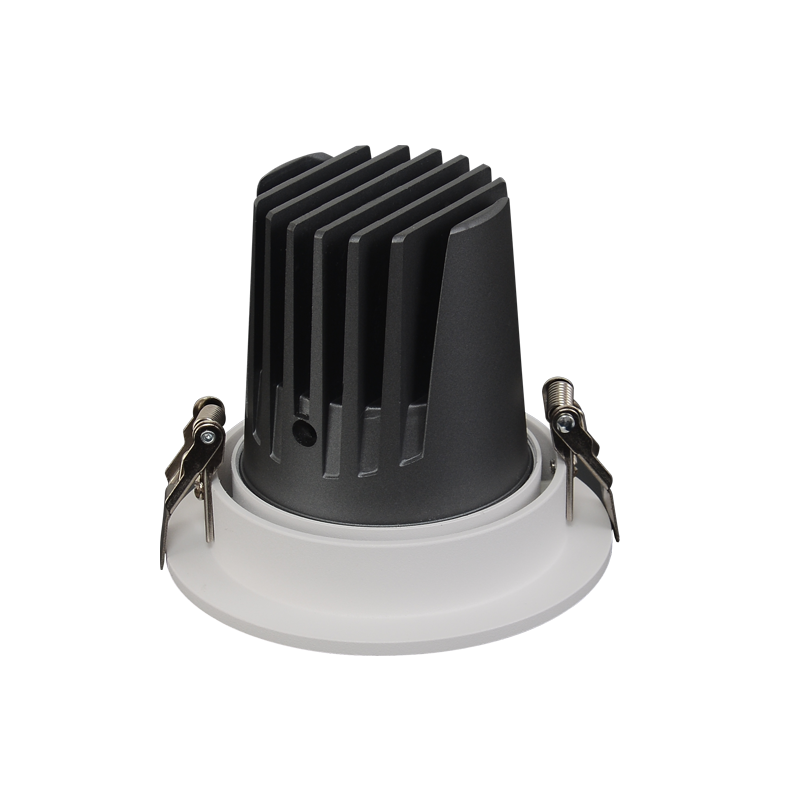

LED Downlight DTL Series

Model: JST-DTL

Wattage: 10W-40W

LED Chip: CITIZEN/CREE

Driver Brand: OSRAM/PHILIPS/LIFUD

RA: >90

Finish Color: White/Black/Customized

Beam Angle: 15°/24°/38°

Diameter: 90mm-160mm

Cutout: 75mm-145mm


Description

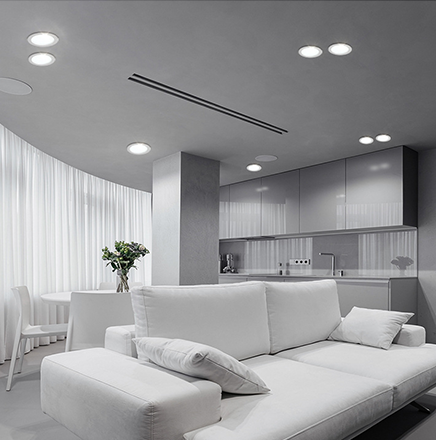

Recessed Downlights are undoubtedly an affordable and popular way to add lighting to a room. During new construction and home remodeling projects, provides efficient lighting while maintaining a neutral profile.

Even the fixtures can be easily hidden between ceiling joists to add ambiance.


Recessed downlights can be divided into:

-Fixed downlight, it is fixed and has no movable head. They are usually installed in a specific orientation and the light cannot be adjusted. Although it is not flexible, they can provide good lighting for the room.

-Adjustable downlights, it has a movable head that change the direction of light to illuminate specific areas of a room or emphasize a feature. It is flexible. DTL series is one of it.


Advantages of adjustable downlights

●Precise Lighting Control

One of the primary advantages of adjustable downlights is their ability to direct light precisely where it's needed. This control enables you to create focal points, illuminate specific areas, and avoid glare or shadows.

●Energy Efficiency

Adjustable downlights use directional lighting, which minimizes wasted light. This efficiency can lead to lower energy bills and reduced environmental impact.

●Versatility

These fixtures are suitable for various settings, including kitchens, living rooms, galleries, and retail spaces. They can be used for accent lighting, task lighting, or general illumination.

●Aesthetic Appeal

Many adjustable downlights come in sleek and modern designs, enhancing the aesthetics of your space. They can blend seamlessly with your interior or exterior decor.


Advantages
  1. Flexible with modular design

  2. High quality, low glare for visual comfort

  3. Power selectable

  4. 75mm-145mm cutout to suit most applications

  5. White Rim - Fused with white ceiling

  6. 5 years warranty

Specification
ModelPowerCRICCTPFCurrentInput VoltageBeam AngleDimensionCutout
JST-DTL10W>80/902700K-5000K>0.900.25AAC220-240V15°/24°/38°D90*H80mm75mm
JST-DTL20W>80/902700K-5000K>0.900.50AAC220-240V15°/24°/38°D110*H100mm95mm
JST-DTL30W>80/902700K-5000K>0.900.75AAC220-240V15°/24°/38°D140*H127mm120mm
JST-DTL35W>80/902700K-5000K>0.900.85AAC220-240V15°/24°/38°D160*H130mm145mm
JST-DTL40W>80/902700K-5000K>0.901.00AAC220-240V15°/24°/38°D160*H130mm145mm

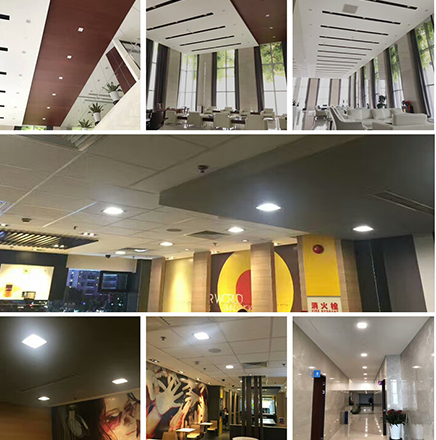

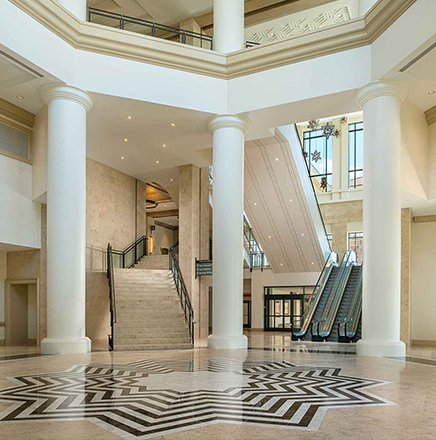

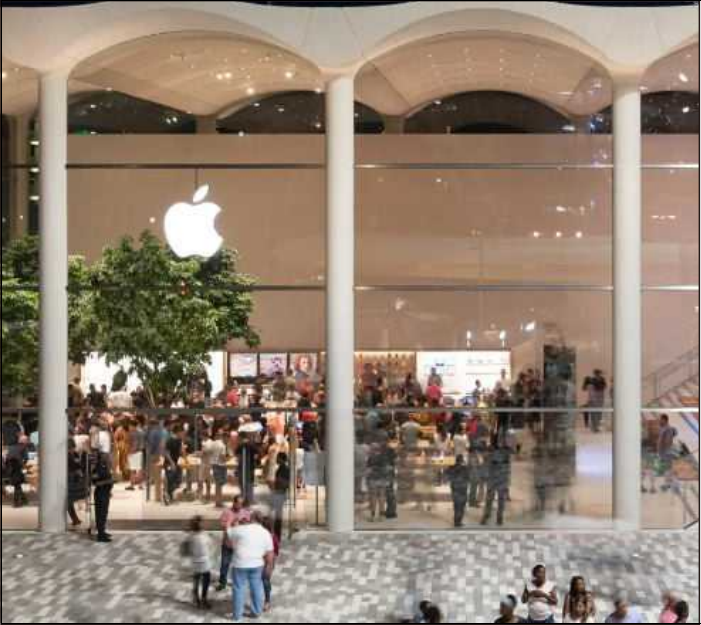

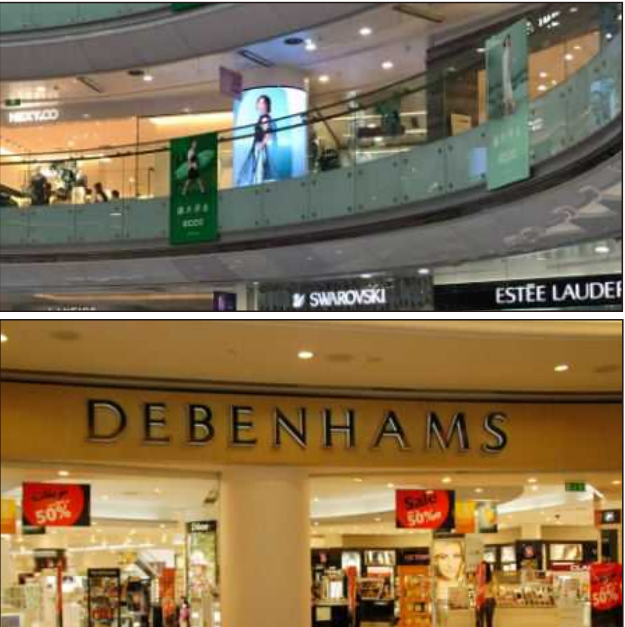

Application

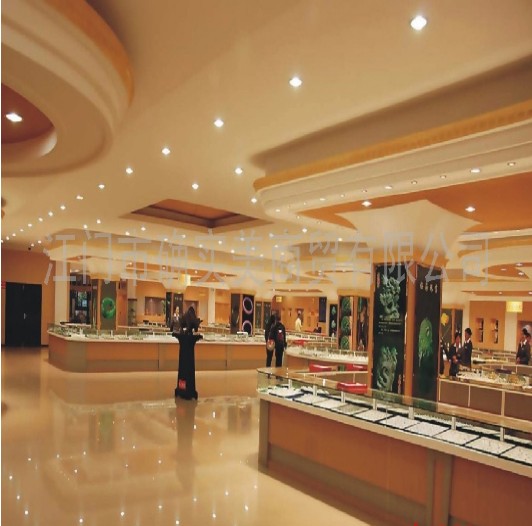

Commercial spaces lighting, Stations lighting, Clubs lighting, Residential areas lighting, Offices lighting, Schools lighting, Restaurants lighting, Museums lighting, Hotels lighting, Showrooms lighting,jewelry stores lighting,banks lighting, airport,lighting, suppermaket lighting etc.

LED Downlight DTL Series LED Downlight DTL Series LED Downlight DTL Series
LED Downlight DTL Series LED Downlight DTL Series LED Downlight DTL Series

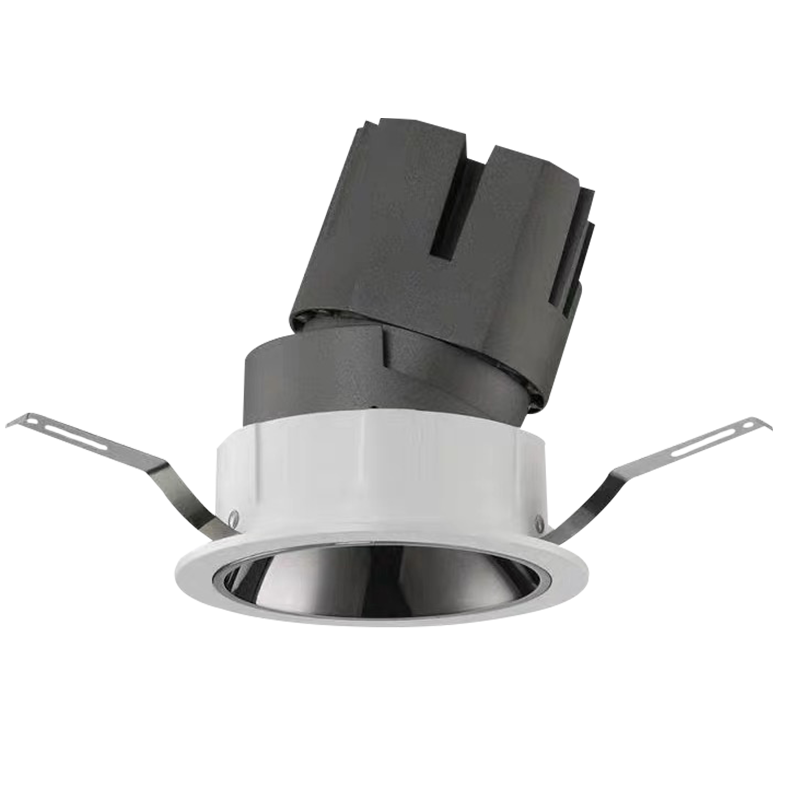

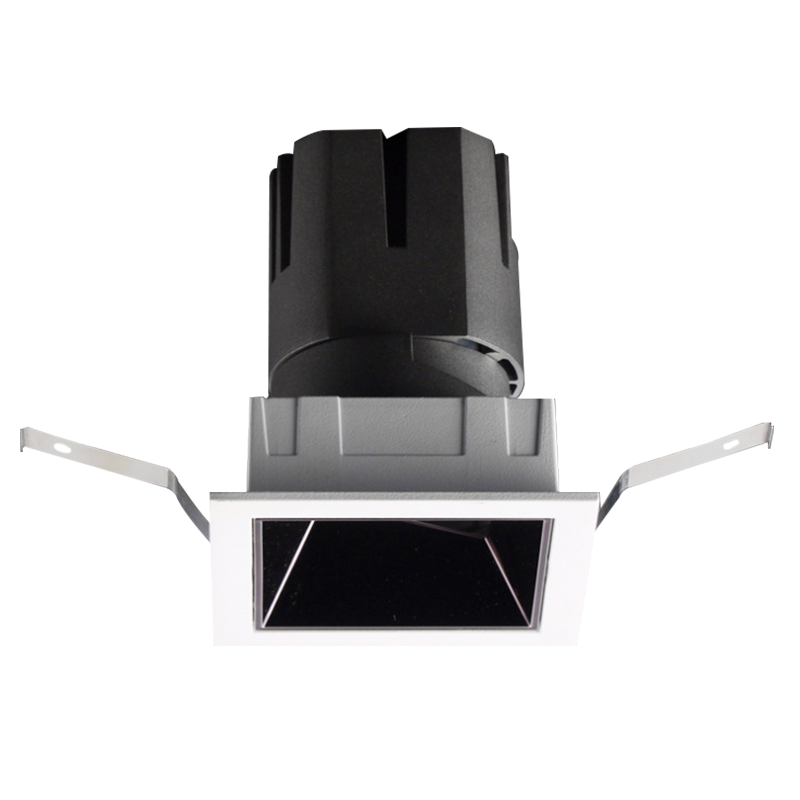

Related Products
