LED Downlight

Adjustable LED Downlight DTV Series

Model: JST-DTV

Wattage: 7W-20W

LED Chip: Citizen/Cree/Epistar

Driver Brand: OSRAM/Philips/Lifud

RA: >90

Finish Color: White/Black/Customized

Beam Angle: 50°

Diameter: 90mm-140mm

Cutout: 75mm-120mm

Description

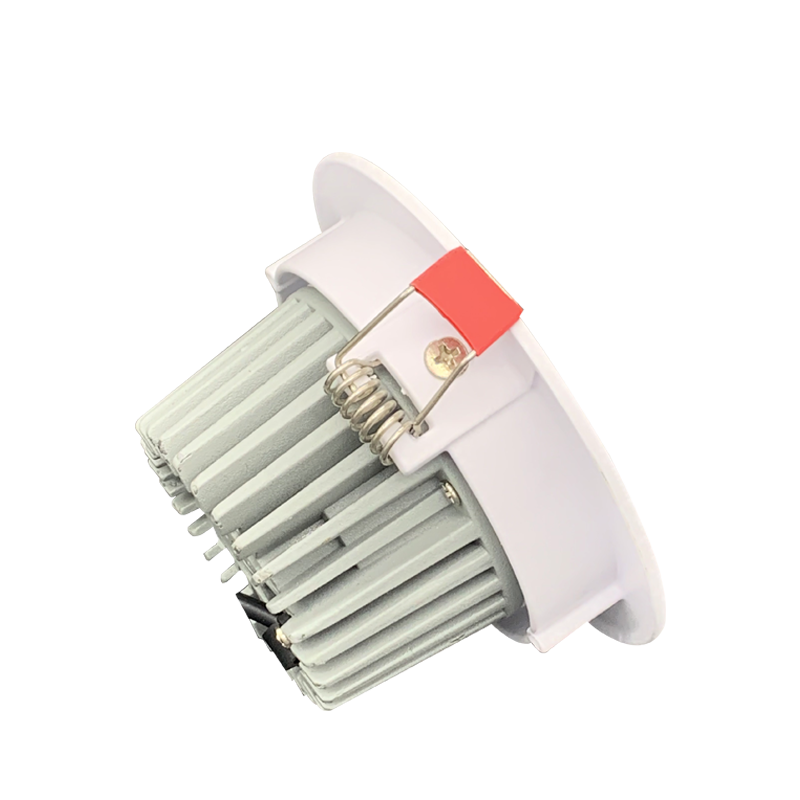

DTV Series are originally researched and developed by JST, pure aluminum housing, anodized finish, use PC reflector, reflective rate>95%high grade glass, transparent rate>93%, top quality CITIZEN COB, with OSRAM/

LIFUD/TRIDONIC exterior driver, dimmable, good heat sink, brilliant quality, more than 50,000 hours life span.

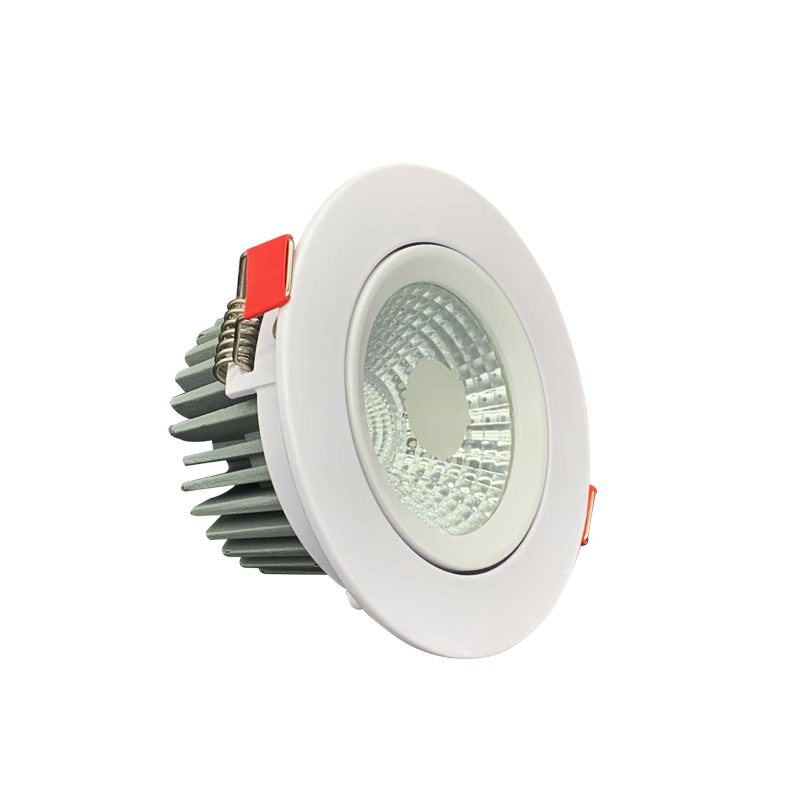

The embedded DTV series downlight is an adjustable LED downlight. As an adjustable downlight, it offers greater flexibility when it comes to lighting a specific space or area, allowing  to direct light where it is needed.

It is a recessed ceiling light that can be tilted or adjusted to the area of interest or need for illumination.


Compared with traditional lamps, DTV series recessed downlights integrate performance, appearance, versatility, eco-friendly, energy saving, and economy, and have no flicker, soft light, smooth beam distribution, and

good vision,comfort and anti-glare, this is why the DTV series more and more popular among friends.

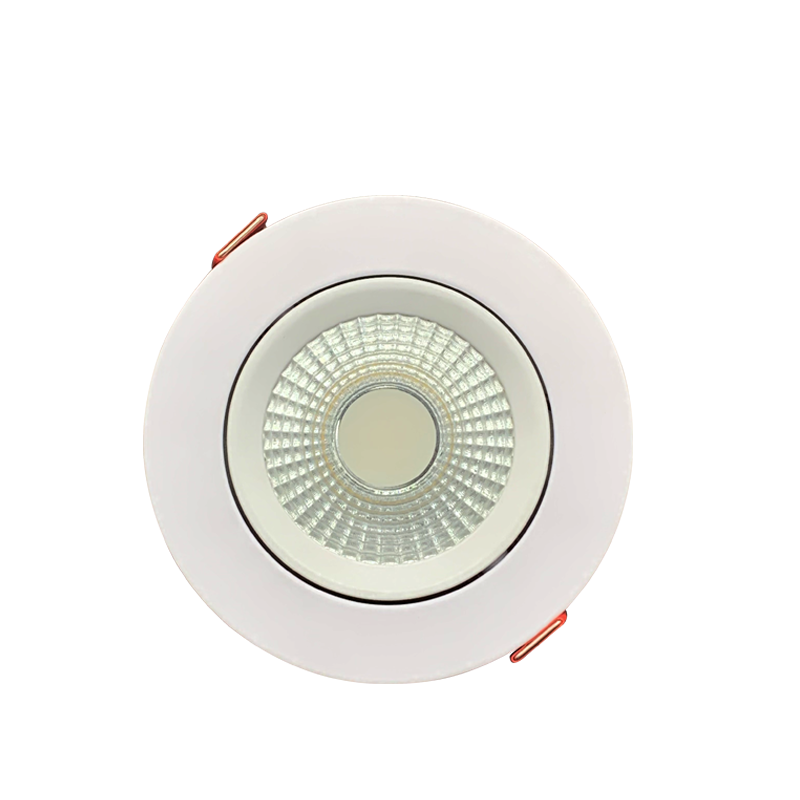

The DTV series has a fixed beam angle of 50, so you no longer have to worry about the angle. It comes with a transparent diffuser with a frosted center, which can penetrate more light and has more anti-glare functions

in one, making the space brighter and making the light less glaring when you look up.


DTV series LED downlights have 4 CCT (2700K, 3000K, 4000K, 5000K) from warm light to cold light. Different CCT can be installed in different areas. Different CCT can create different atmospheres, giving someone a

stable mood.


DTV Series LED Downlights are available in round and square, easily adds style to any room and environment.



Advantages

1. Precision engineered optical stack creates uniform light distribution that maximizes lumen output

2. Flat surface and IP44 rating make cleaning easy

3. The LED downlights are 4 CCT(2700K,3000K,4000K,5000K) tunable and offer full dimming capability to satisfy more application needs in residential and commercial settings.

4. Low profile design and remote driver enclosure ideal for shallow plenums

5. Easy to install, no additional housing or junction box required

6. 5years warranty


Specification
ModelPowerCRICCTPFCurrentInput VoltageBeam AngleDimensionCutout
JST-DTV7W>80/902700K-5000K>0.650.16AAC220-240V50°D90*H55mm75mm
JST-DTV10W>80/902700K-5000K>0.650.25AAC220-240V50°D105*H65mm95mm
JST-DTV15W>80/902700K-5000K>0.900.35AAC220-240V50°D140*H70mm120mm
JST-DTV20W>80/902700K-5000K>0.900.50AAC220-240V50°D140*H70mm120mm
Application

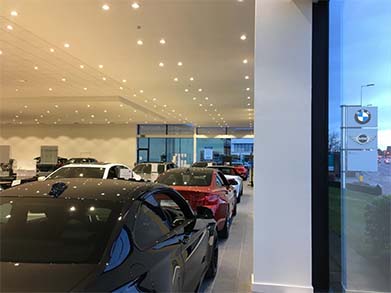

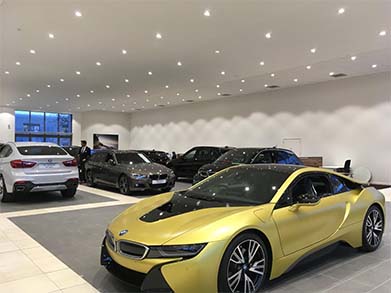

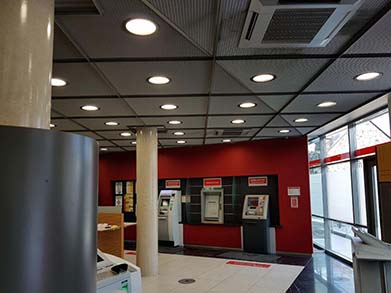

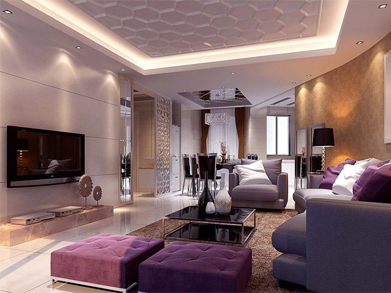

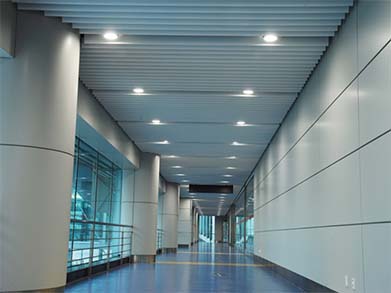

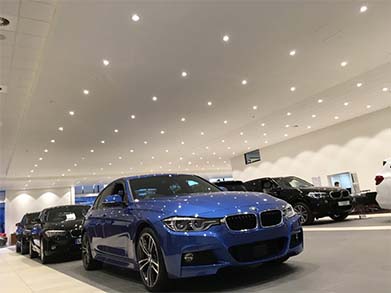

Commercial spaces lighting, Stations lighting, Clubs lighting, Residential areas lighting, Offices lighting, Schools lighting, Restaurants lighting, Museums lighting, Hotels lighting, Showrooms lighting,jewelry stores lighting,banks lighting, airport,lighting, suppermaket lighting etc.

Adjustable LED Downlight DTV Series Adjustable LED Downlight DTV Series Adjustable LED Downlight DTV Series
Adjustable LED Downlight DTV Series Adjustable LED Downlight DTV Series Adjustable LED Downlight DTV Series
