Model: JST-DTG
Wattage: 10W-80W
LED Chip: Citizen/Cree
Driver Brand: OSRAM/Philips/Lifud
RA: ＞90
Finish Color: White/Black/Customized
Beam Angle:15°/35°/40°/60°
Diameter: 93mm-280mm
Cutout: 80mm-255mm
Downlights are modern lighting fixtures that are often recessed into ceilings, surfaces so that they are flush with the surrounding area. Its light is directed downwards
and focused, providing a stylish and unobtrusive lighting solution. Downlights have a wide range of applications and can be used in a variety of environments,
including residential and commercial spaces. In the home, downlights can be used in any room, but are particularly popular in bathrooms, kitchens and hallways.
They are also commonly used for lighting cabinet spaces.

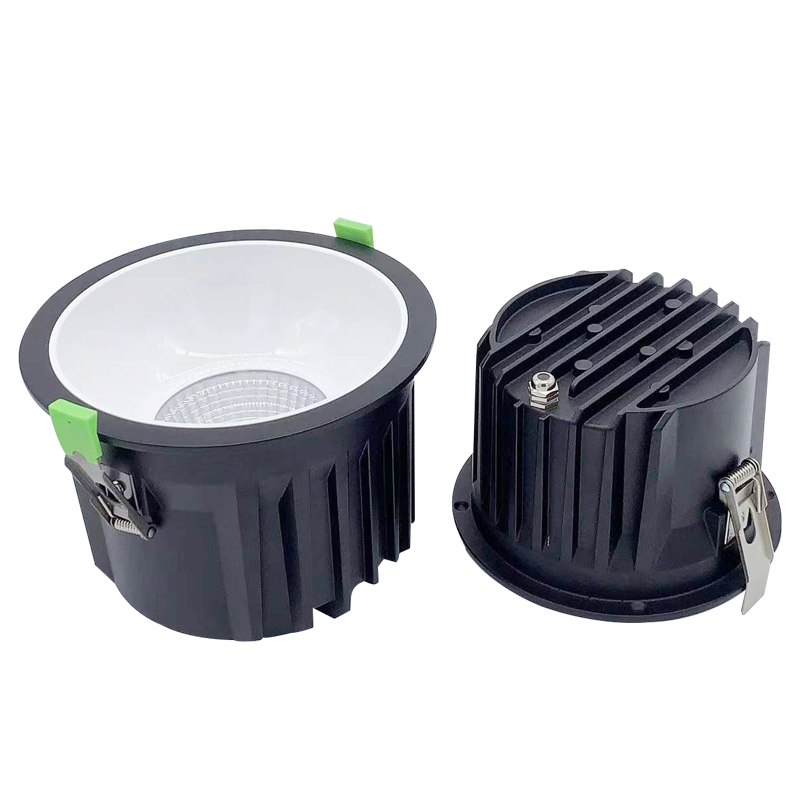

What does a recessed downlight consist of?
-LED chip
-Heat sink
-Install the spring
-Lamp frame
-Reflector
-Diffuser

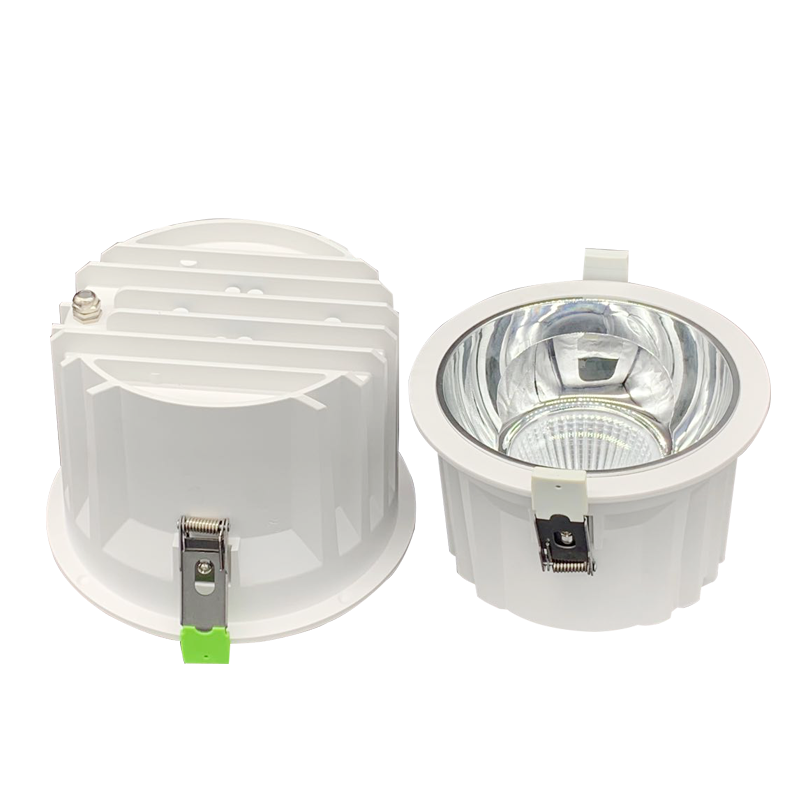

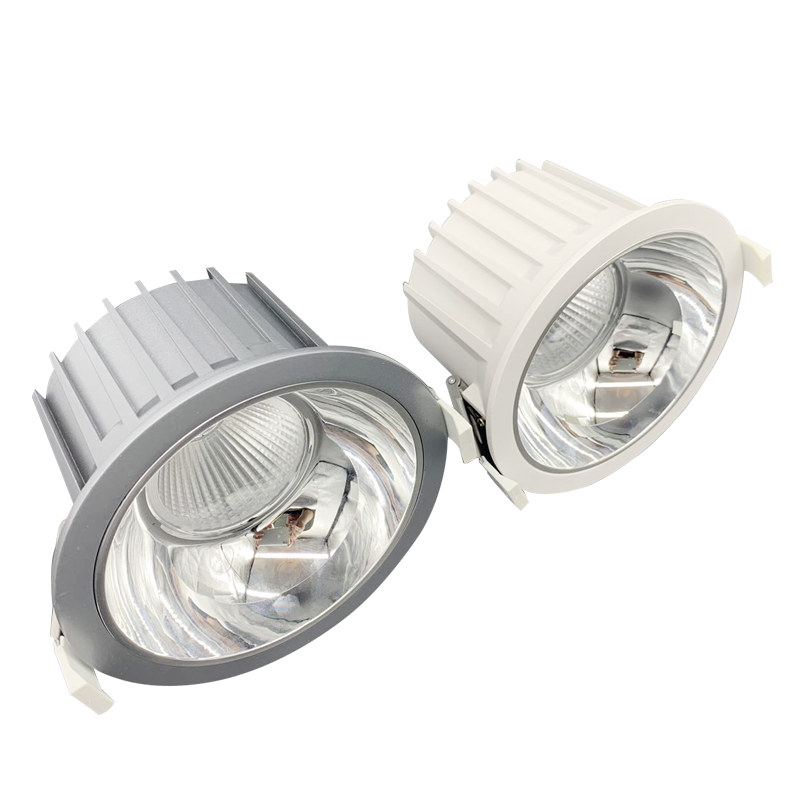

What is a reflector?
Downlight reflector- optical reflector, is a piece of hardware installed on the chip in the downlight fixture. A downlight reflector is a highly reflective surface to guide
light and make it brighter.There are two types: reflector and lenses. Installing the reflector is very simple, first, fix the adapter on the COB LED, then secure the reflector
by simply twisting and locking it on the heat sink adapter.
Reflectors are an important part of downlight. It directs light from a ceiling-mounted light source to specific areas, helping you achieve perfect lighting for any room
in your home.

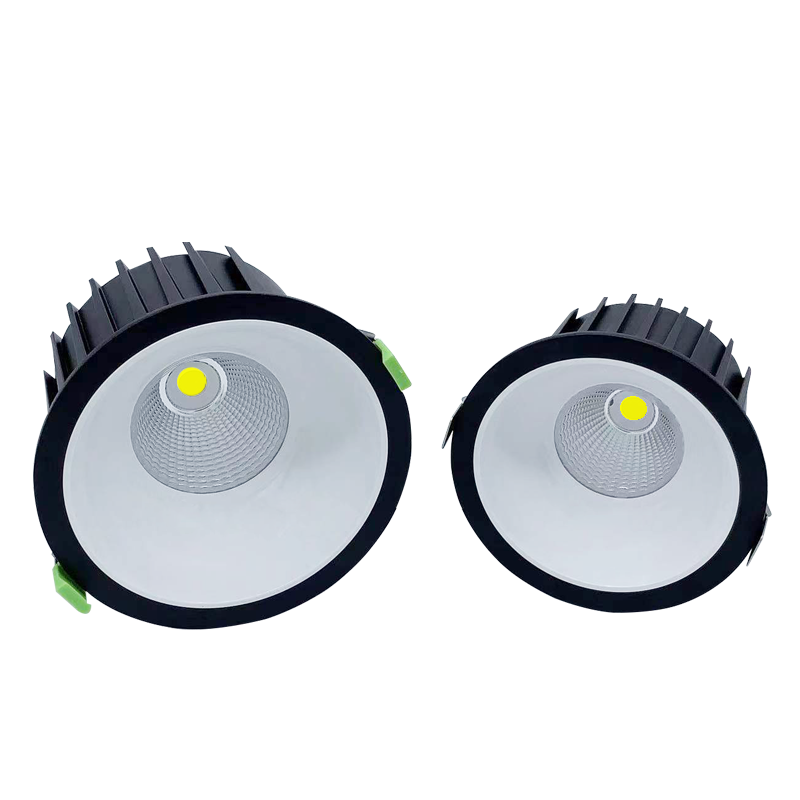

The DTG series is composed of a reflective cup + an anti-glare cup. The double structure is more anti-glare and more eye-protective. The reflective has 15° I 35° I 40° I
60° beam angle optional. Please choose the most suitable one which is the required beam angle, because it is used to reflect light, making the light cover a wide
range and increasing the brightness of the space. It is designed to achieve optimal levels of reflection and light emission for your carefully designed space.
1. High Ra>90, high efficiency,high luminosisy, SDCM<3, make surroundings of high-quality illumination
2. Glare-fee design, perfect light spot with precise cast.
3. Easy to installation.
4. Aluminum alloy housing, ensure high-end and gorgeous product with beautiful design
5. Integrated design,with excellent thermal perormance
6. 15°/35°/40°/60° and 10W-80W to choose
| Model | Power | CRI | CCT | PF | Current | Input Voltage | Beam Angle | Dimension | Cutout |
| JST-DTG | 10W | >80/90 | 2700K-5000K | >0.90 | 0.25A | AC220-240V | 15°/30°/40°/60° | D93*H65mm | 80mm |
| JST-DTG | 15W | >80/90 | 2700K-5000K | >0.90 | 0.35A | AC220-240V | 15°/30°/40°/60° | D118*H75mm | 100mm |
| JST-DTG | 20W | >80/90 | 2700K-5000K | >0.90 | 0.50A | AC220-240V | 15°/30°/40°/60° | D138*H90mm | 120mm |
| JST-DTG | 30W | >80/90 | 2700K-5000K | >0.90 | 0.75A | AC220-240V | 15°/30°/40°/60° | D168*H100mm | 145mm |
| JST-DTG | 40W | >80/90 | 2700K-5000K | >0.90 | 1.00A | AC220-240V | 15°/30°/40°/60° | D196*H120mm | 170mm |
| JST-DTG | 50W | >80/90 | 2700K-5000K | >0.90 | 1.25A | AC220-240V | 15°/30°/40°/60° | D235*H140mm | 210mm |
| JST-DTG | 60W | >80/90 | 2700K-5000K | >0.90 | 1.50A | AC220-240V | 15°/30°/40°/60° | D280*H160mm | 255mm |
| JST-DTG | 80W | >80/90 | 2700K-5000K | >0.90 | 2.00A | AC220-240V | 15°/30°/40°/60° | D280*H160mm | 255mm |

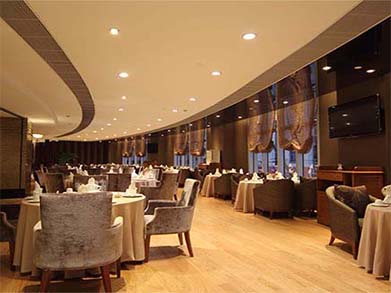

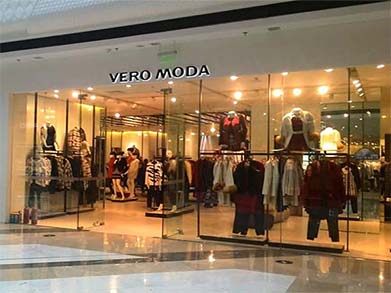

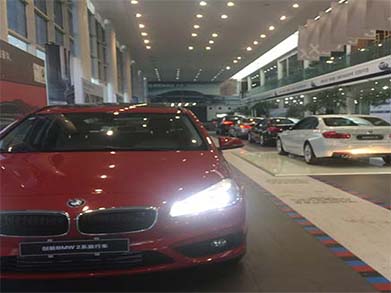

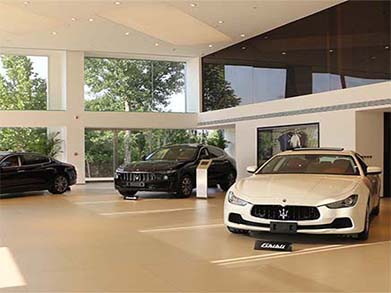

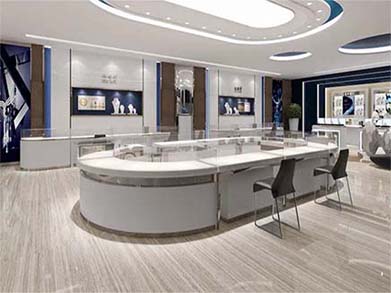

Commercial spaces lighting, Stations lighting, Clubs lighting, Residential areas lighting, Offices lighting, Schools lighting, Restaurants lighting, Museums lighting, Hotels lighting, Showrooms lighting,jewelry stores lighting，banks lighting, airport,lighting, suppermaket lighting etc.
